MANIOC GRATER BOWL

3D Models

Figures

Figure 107: Reference image with ridged ceramic manioc grater bowl and handheld manioc grater implement, also known as a 'mano'. We modeled the manioc grater bowl. (Betancourt 2012: 10).

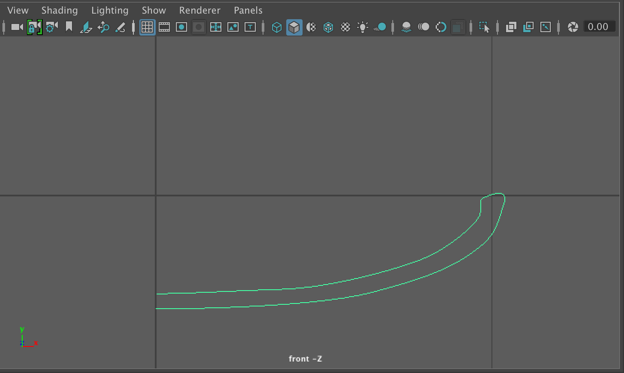

Figure 108: Bezier Curve for ceramic manioc grater bowl.

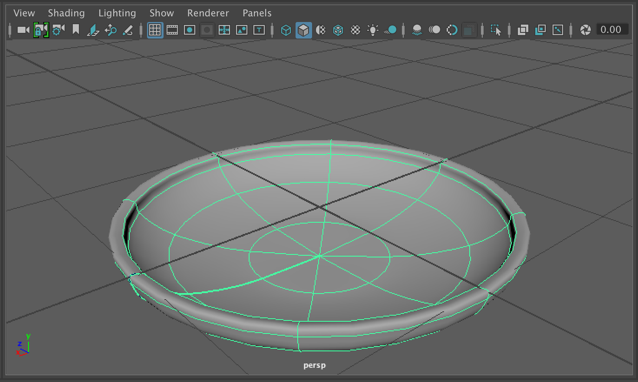

Figure 109: Revolved Bezier Curve to form the shape of manioc grater bowl.

Figure 110: Thin rectangular prism shape bent to match the bowl’s curve using the Bend Tool.

Figure 111: Manioc grater bowl model with individually modeled bent ridges attached to the interior of the bowl.

Figure 112: Ceramic texture for ceramic manioc grater bowl.

Figure 113: Preview of ceramic manioc grater with Lambert texture assigned.
