GLOBAL VESSEL
3D Models
Figures

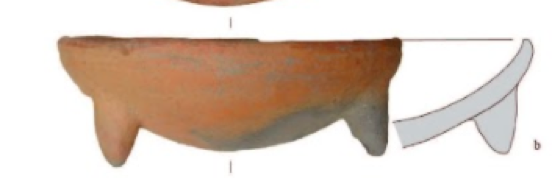

Figure 15: Reference image the bowl model was based from (Jaimes 2012: 12).

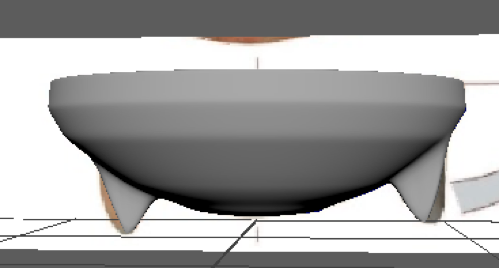

Figure 16: Model of bowl with legs in front of reference image.

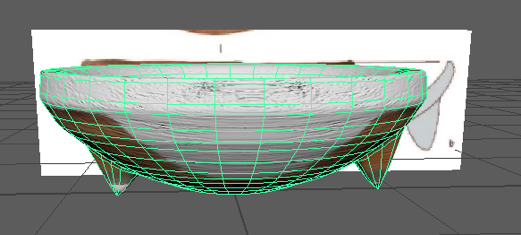

Figure 17: Bowl with original reference image placed on as a texture.
Figure 18: Image of cropped reference image only showing the texture of the bowl.
Figure 19: Final texture used on the pot. The color is similar to the color in the reference image.

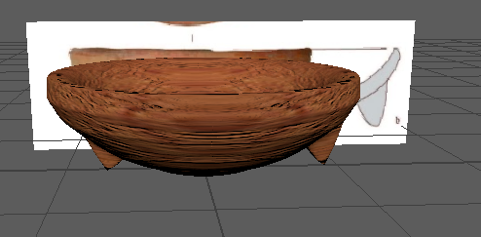

Figure 20: First bump map.

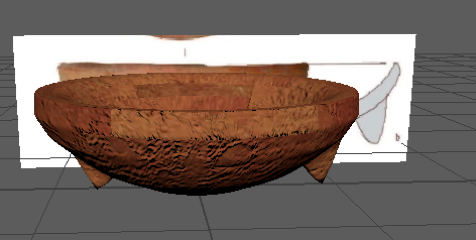

Figure 21: UV changed from automatic to cylindrical.

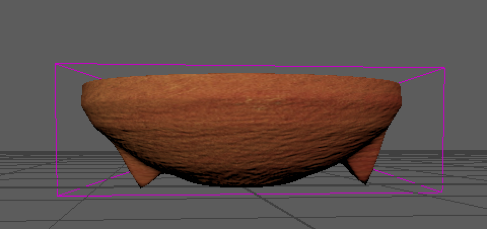

Figure 22: Bump map that was too rough.
Figure 23: Bump map that was too rough.
