GOURDS

Figure 32: A variety of gourd and half gourds with typical decorations and shapes. (Petrullo 1932: 155)

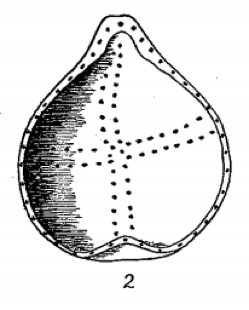

Figure 33: Reference image for half gourd. (Petrullo 1932: 155)

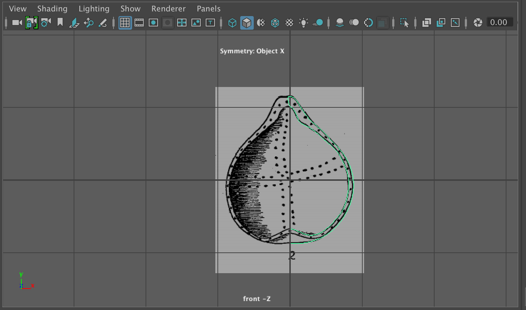

Figure 34: Reference image on a Free Image Plane and Bezier Curve for Half Gourd.

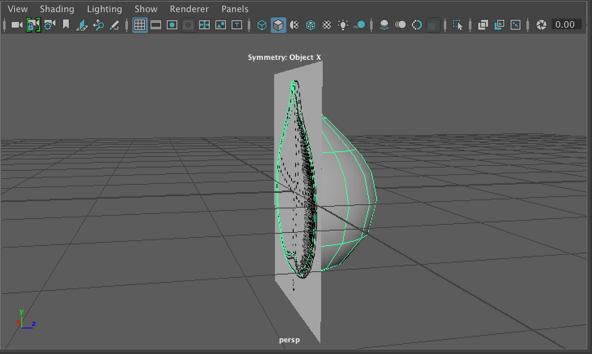

Figure 35: Revolved surface created from revolving the Bezier Curve 180 degrees.

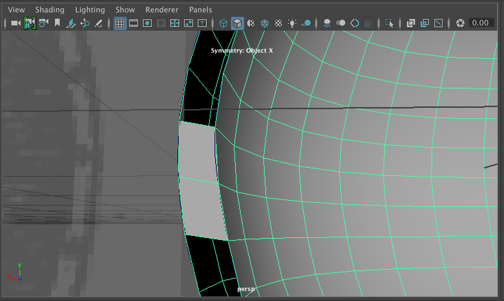

Figure 36: Two faces created using the Bridge Tool.

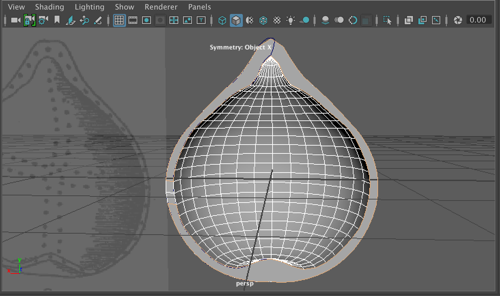

Figure 37: Half Gourd after using the Fill Hole Tool to fill the space between the inner and outer walls.

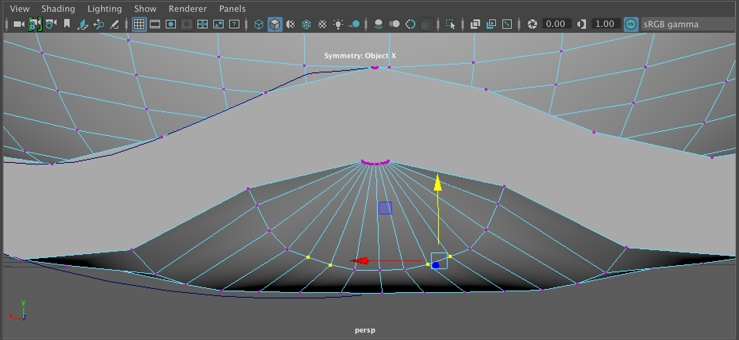

Figure 38: Model of bump on the base of the Half Gourd, created by manipulating vertices and faces.

Figure 39: Mirrored texture for Half Gourd.

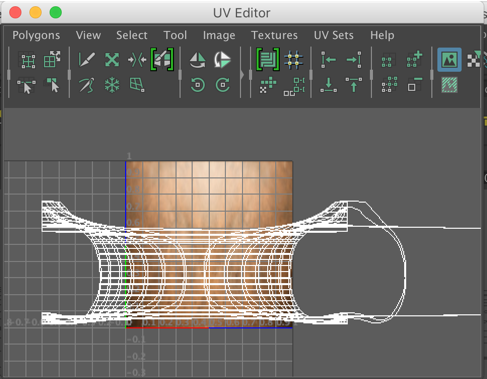

Figure 40: UV Outliner for Half Gourd using a Cylindrical UV Map.

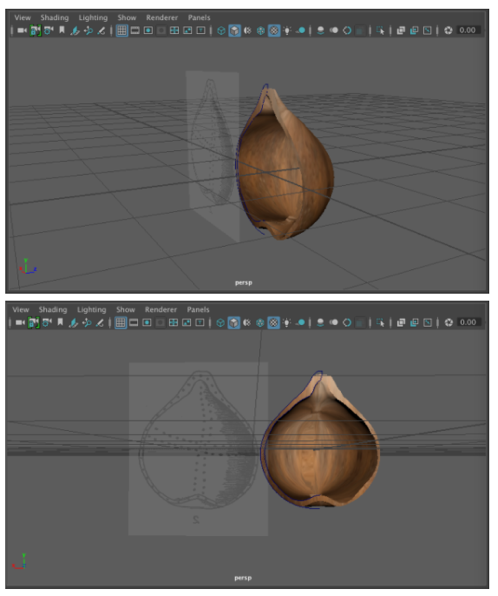

Figure 41: Preview of Half Gourd with texture assigned.

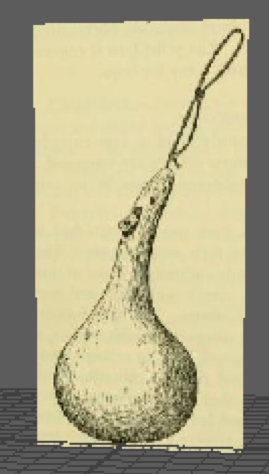

Figure 42: Free Image Plane containing reference image of gourd (Métraux 1948: 477).

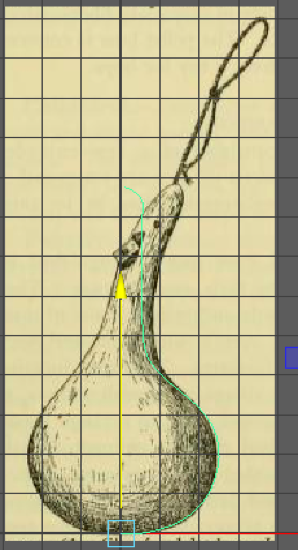

Figure 43: Bezier Curve following the lengthwise edge of the gourd.

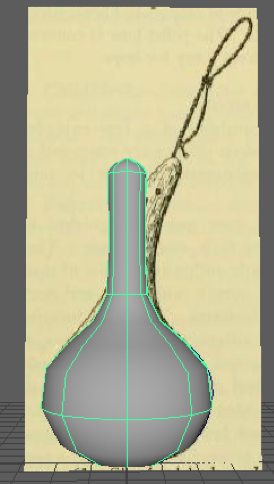

Figure 44: Revolved surface created from the Bezier Curve.

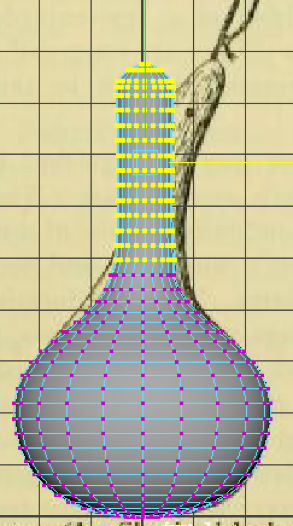

Figure 45: Selecting all of the vertices in the stem and shifting them over slightly to match the stem in the reference image.

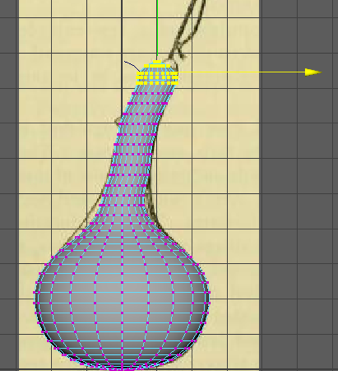

Figure 46: One step in the process of selecting all the vertices except the bottom row and shifting them to match the reference image.

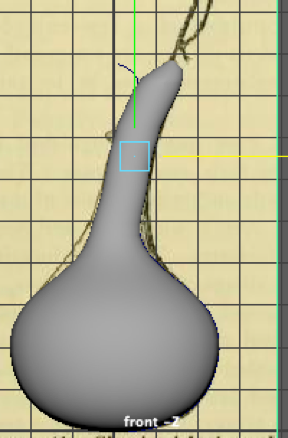

Figure 47: Stem in correct position.

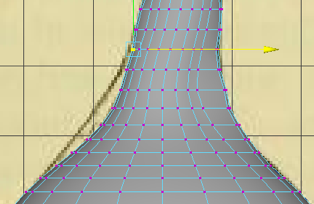

Figure 48: Moving single vertices to match the position in the reference image.

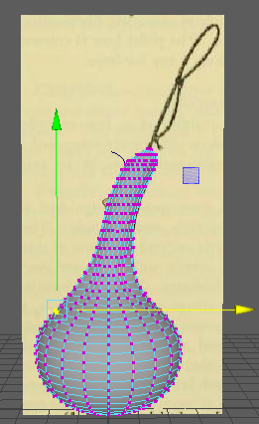

Figure 49: Moving single vertices on the body of the gourd to match the reference image.

Figure 50: Cylindrical polygon created for the rope.

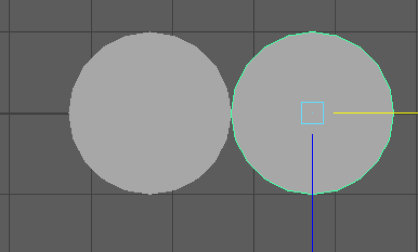

Figure 51: Top face of the cylindrical polygon and copy of that face.

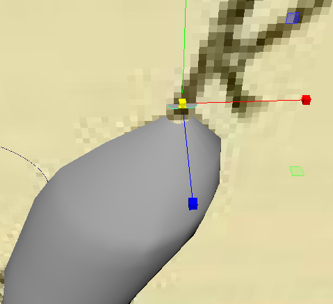

Figure 52: Scaled circles placed on top of the stem of the gourd.

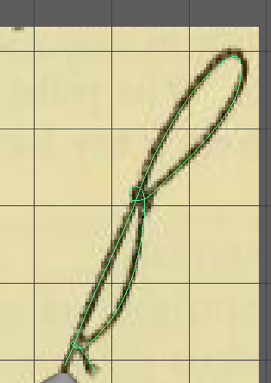

Figure 53: CV curve that traces the rope in the reference image.

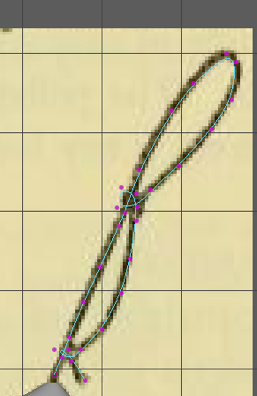

Figure 54: Moving the vertices of the curve to mimic a rope tied in a knot.

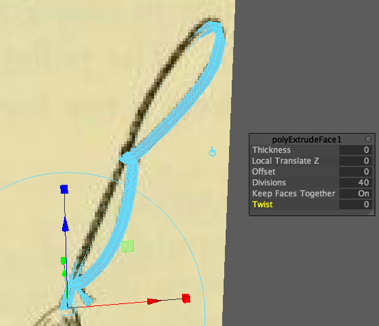

Figure 55: Adding division to the rope.

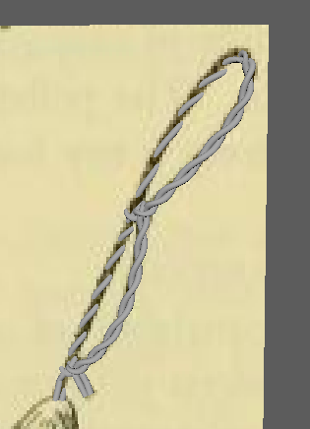

Figure 56: Adding twists to the shape to make it look like a rope.

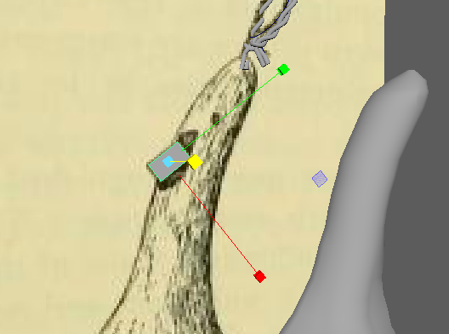

Figure 57: Created small rectangle shown in reference image.

Figure 58: Extending the rope to reach the block of wood.

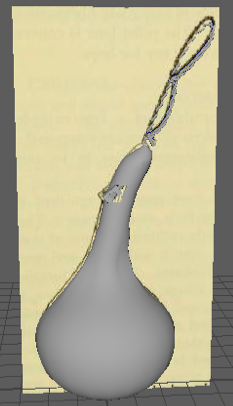

Figure 59: Deleted faces on gourd that rope goes through and block is on the other end.

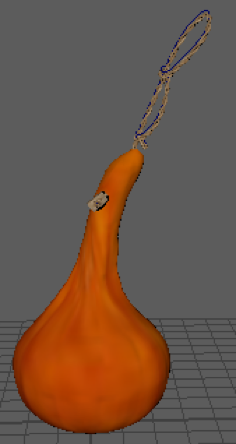

Figure 60: Final model of the gourd with lid.
