Near Eastern archaeologists often explore the recursive relationship between past peoples and their built environments through analyses that rely on considerations of the size and shape of buildings. The working assumption is that changes in a structure’s size and shape across space and through time reveal the shifting social interests of their inhabitants. As a result, building plans in 2D have long dominated articles and book-length studies about the archaeology of the Near East, with preference given to discussions on architectural symmetry and scale. This paper argues that an interpretation of the built environment based on these parameters alone is too simplistic; in fact, it replaces the old adage about attributing pots and people with buildings and people. Ethnographic analogy demonstrates that space in traditional Middle Eastern communities is not perceived or utilized in any absolute sense, but instead works through networks of familiarity, such as neighborhoods and households based on kinship ties. Thus, 3D computer modeling and animation offer a novel approach for ground-level (as opposed top-down) phenomenological studies. Such models can better capture the lived experience of people in the past, based on their dynamic movement through and active role in these spatially oriented networks. As a result, this paper describes a 3D model that was developed to visualize people and their movement through the Neo-Assyrian rural center of Tell Billa in the 1st millennium BCE.
Figure 1: Regional Map with Tell Billa and Major Sites
Figure 2: Modern Bing Image of Tell Billa with Visible Military Fortifications and Encroachment
Figure 3: 1968 Corona Image of Tell Billa

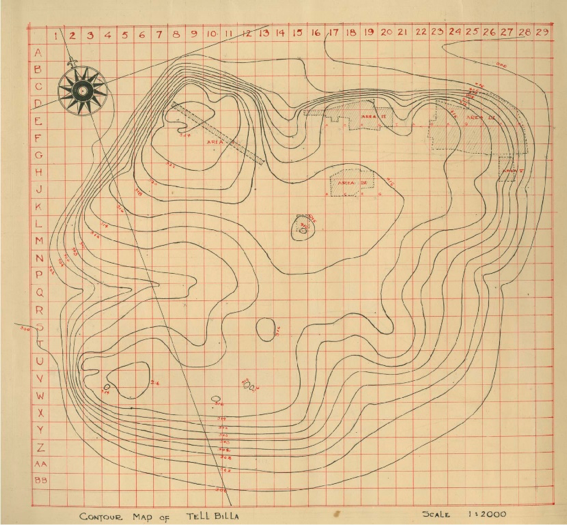

Figure 4: Topographic Map of Tell Billa with Excavation Squares

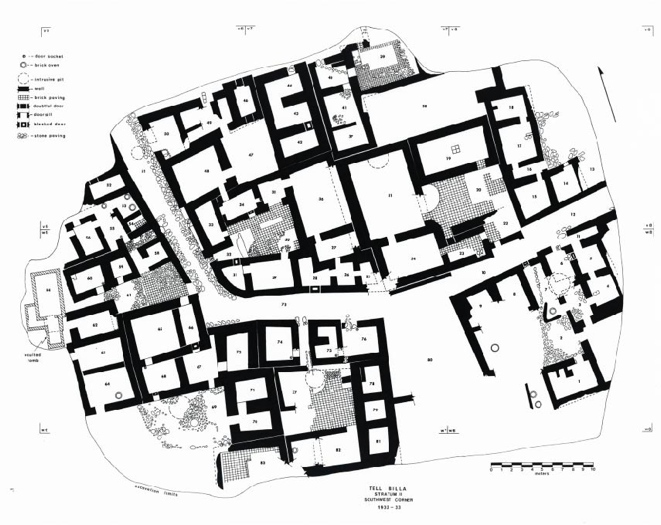

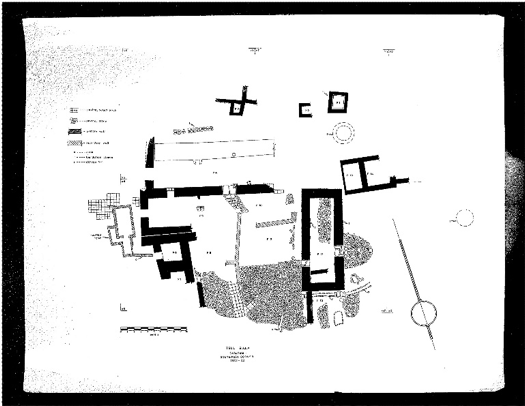

Figure 5: Level IA (Neo-Assyrian) Plan of Tell Billa’s Residential Quarter
Figure 6: Level 1 (undated) Plan of Tell Billa’s Residential Quarter

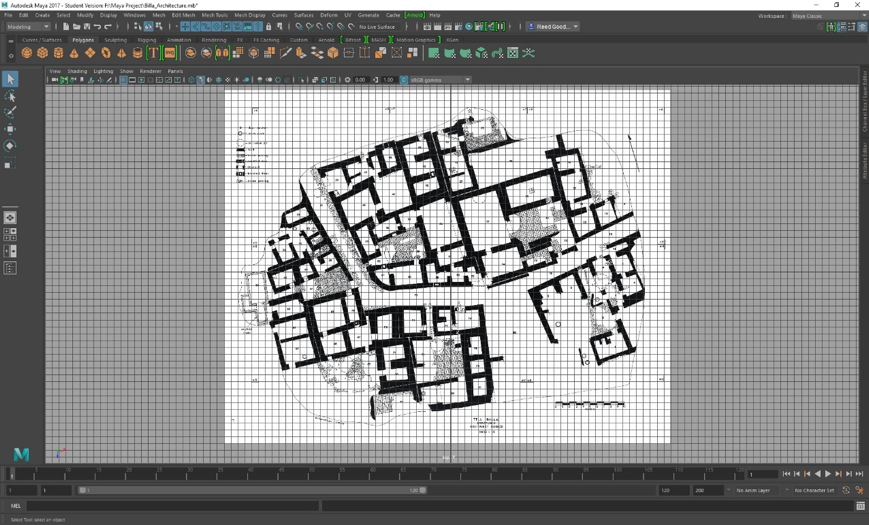

Figure 7: Metric-based Grid Creation

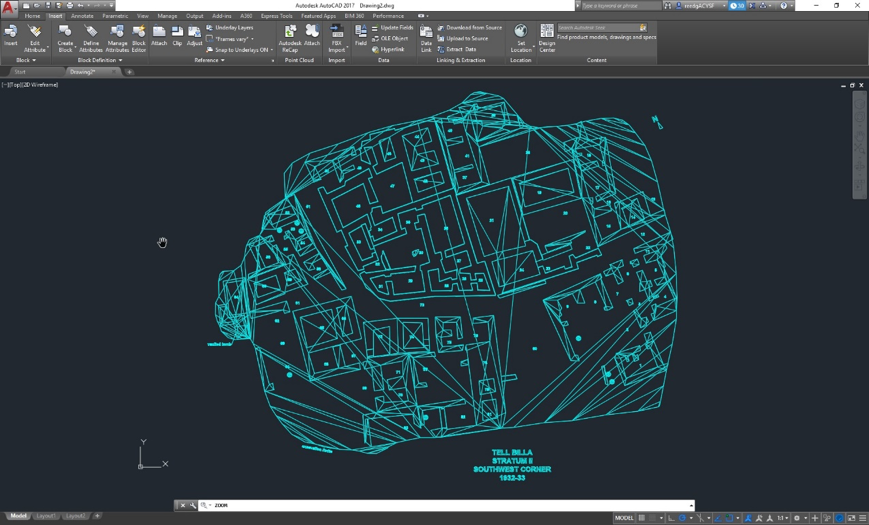

Figure 8: Level IA Trace in AutoCAD

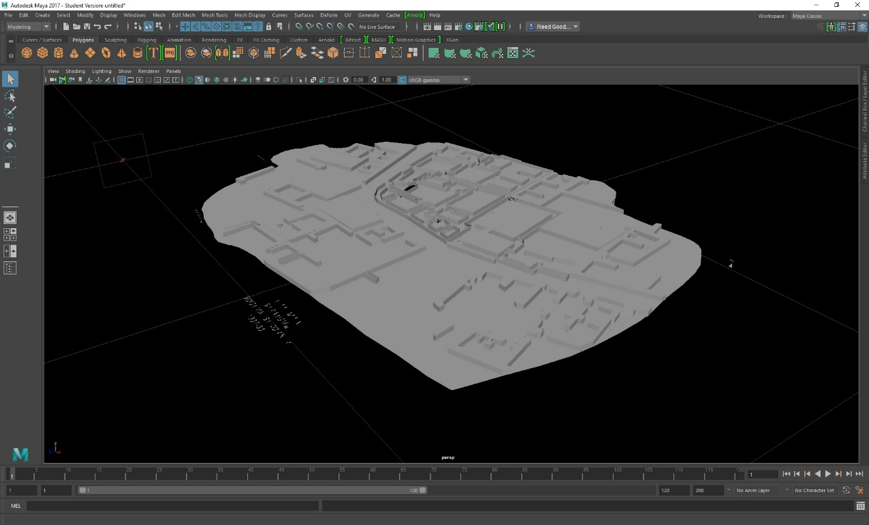

Figure 9: Over- and Under- Interpolated Surfaces after File Transfer from AutoCAD to Maya

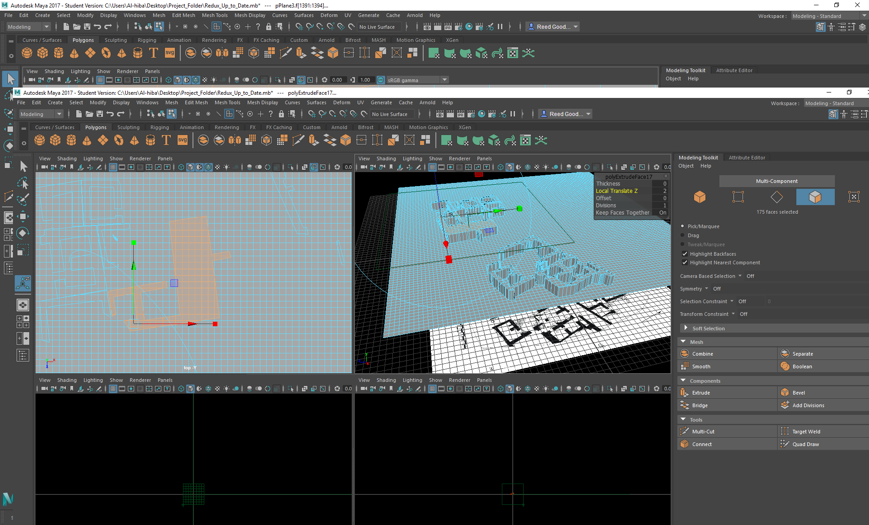

Figure 10: Single Polygonal Mesh with Early Divisions and Results

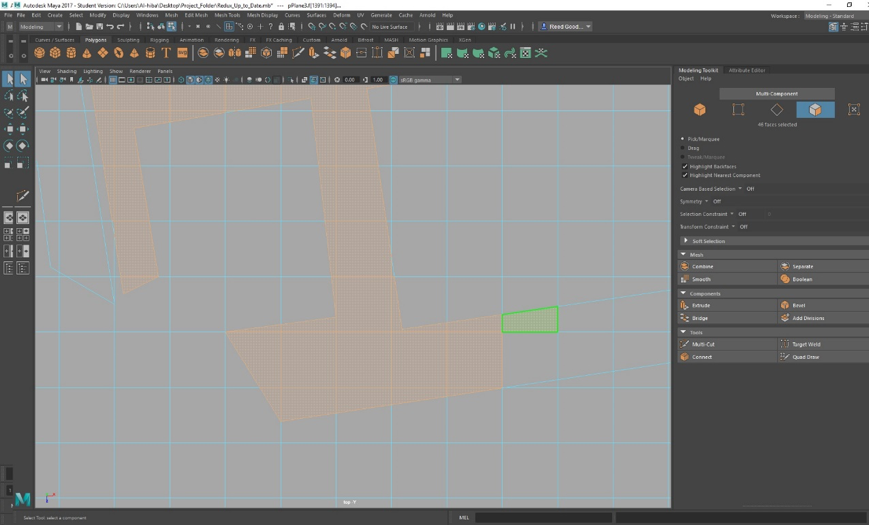

Figure 11: Multi-Cut Tool to Trace out and Cut Polygons

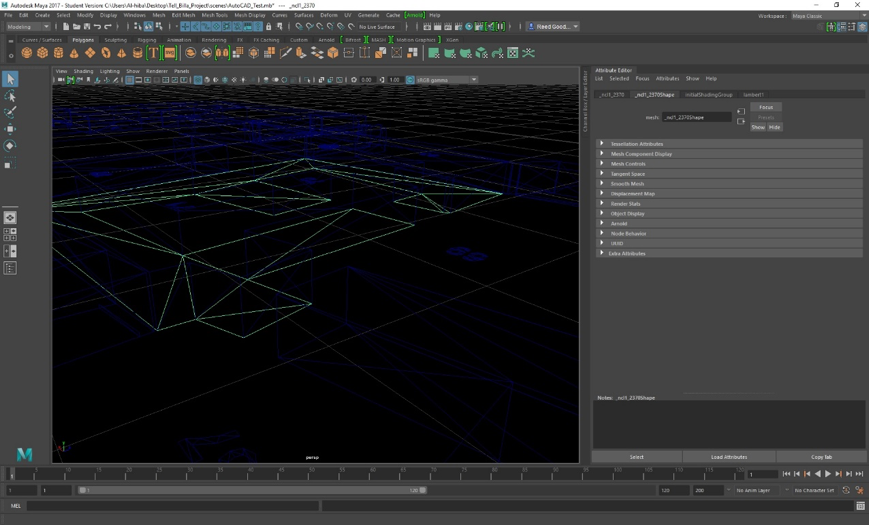

Figure 12: Wire-Frame Surface in Maya

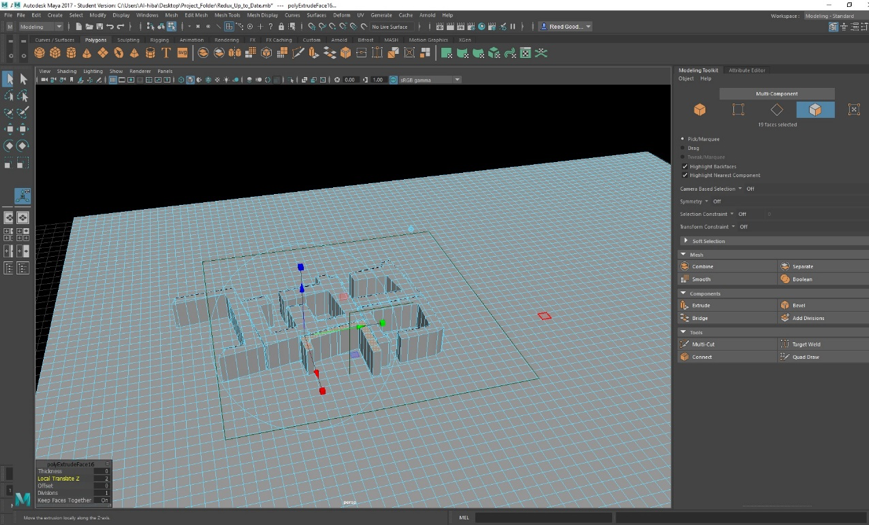

Figure 13: Modeling Toolkit Panel in Maya with Local Translation of Z Axis

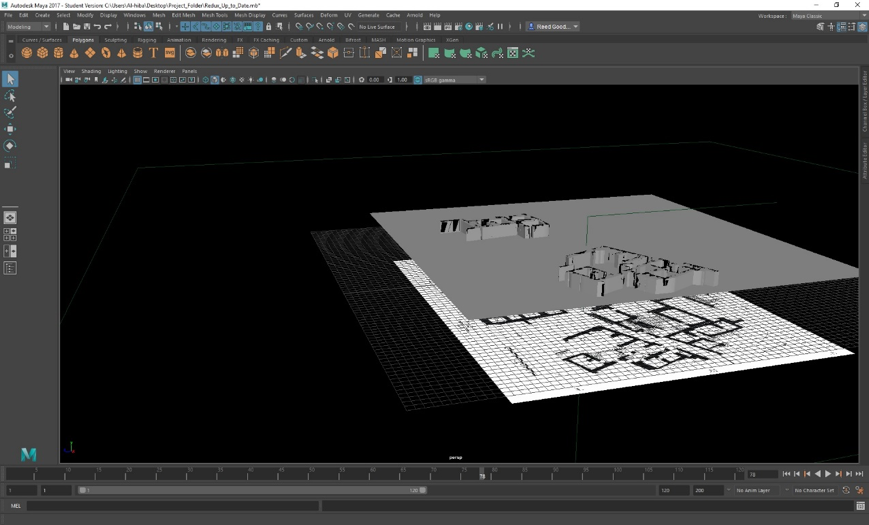

Figure 14: Early Wall Extrusion Results in Maya

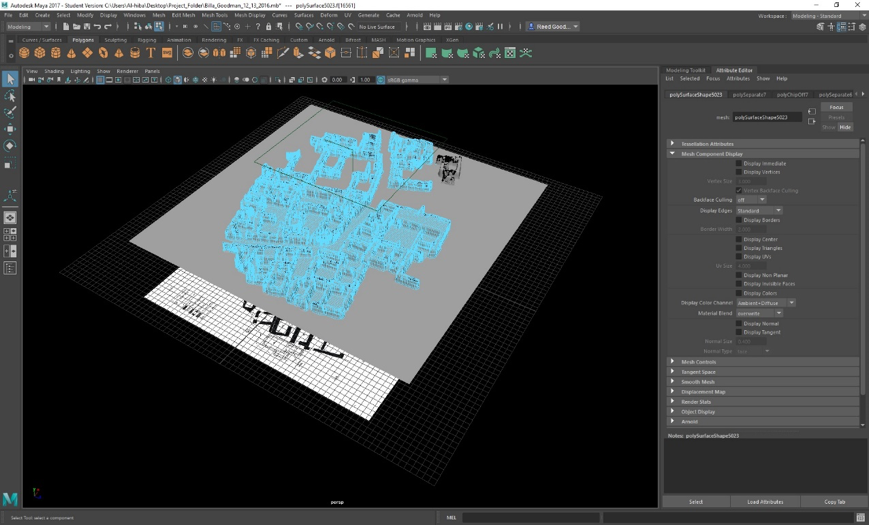

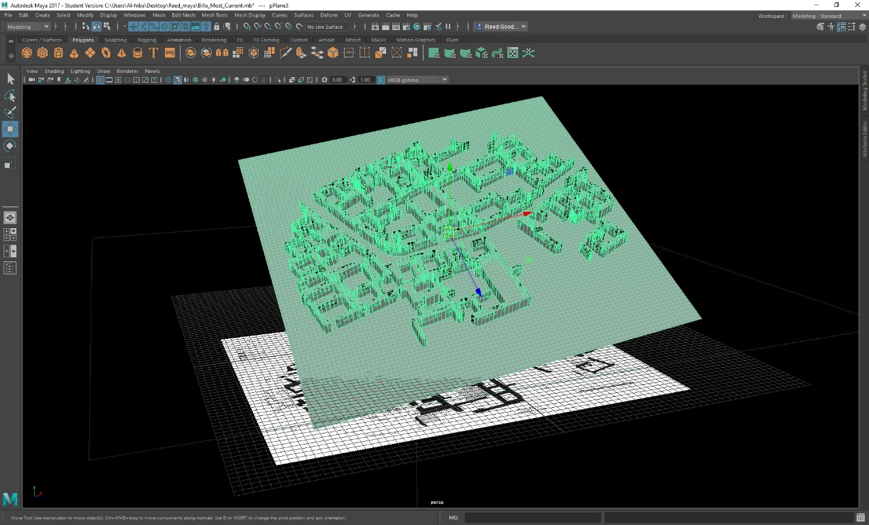

Figure 15: Completed Walls and Underlying Base Mesh
Figure 16: Entire Mesh Remains a Single Group of Polygonal Faces, Line Edges and Point Vertices

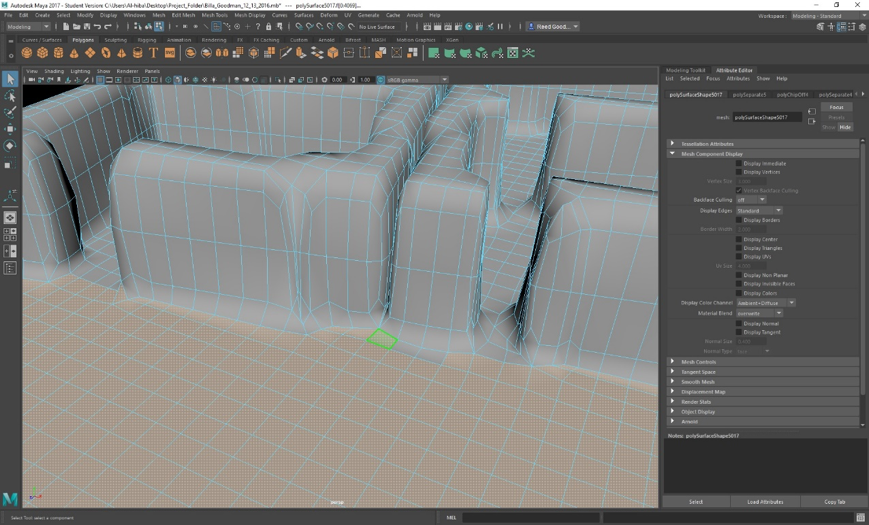

Figure 17: Separating Wall from Floor Mesh with Attribute Editor
Figure 18: Google Image Uploaded to Maya for Ground Texture

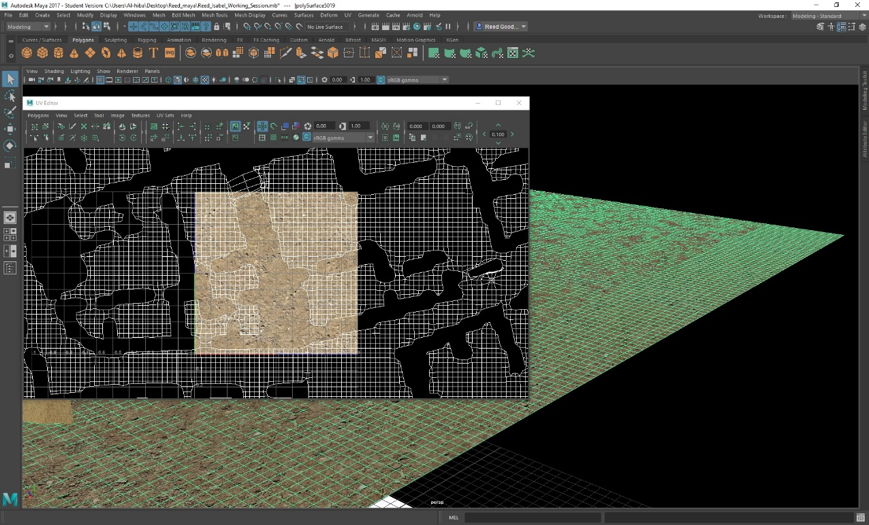

Figure 19: Selection of UV Shells for Rescaling in UV Editor
Figure 20: Google Image Uploaded to Maya for Wall Texture

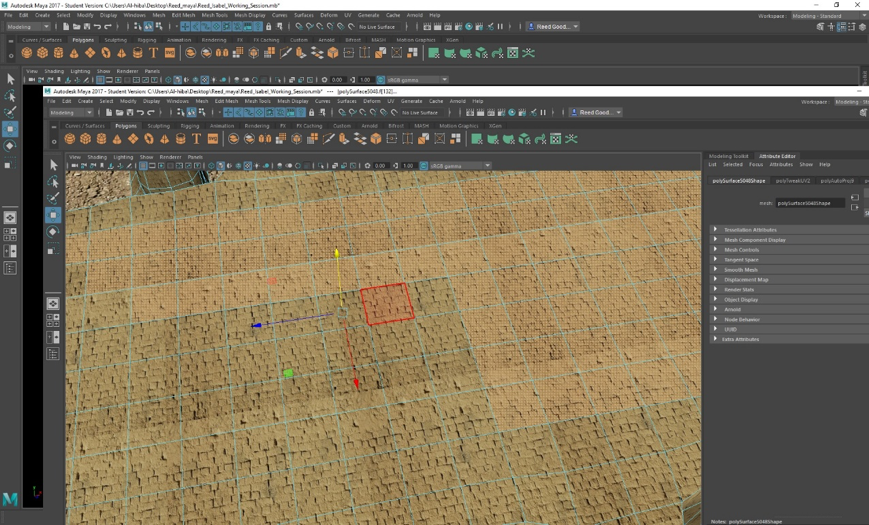

Figure 21: Face Selection for Conversion to Roof

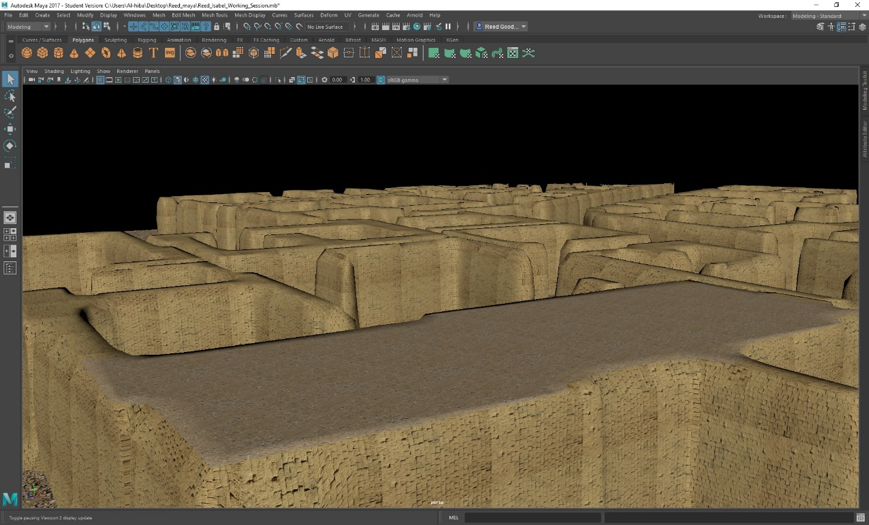

Figure 22: Textured Result of Tamped-Clay Roof

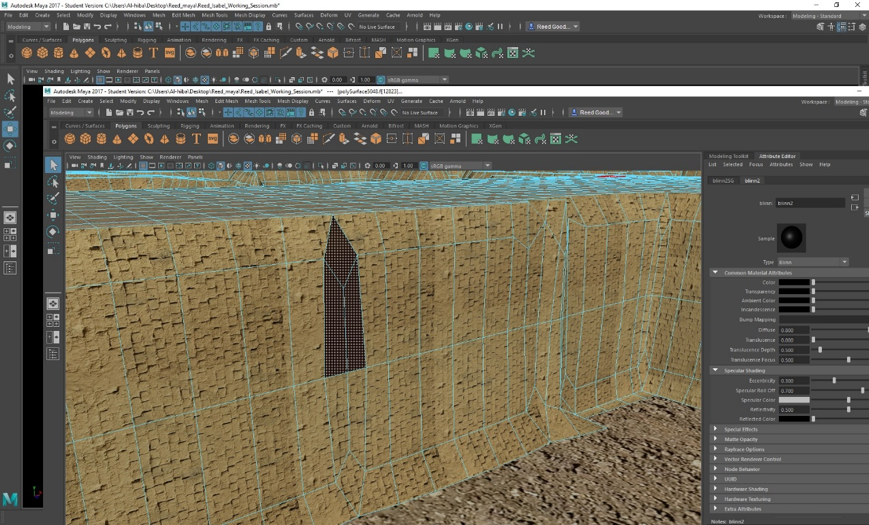

Figure 23: Window Creation through Face Selection, Extrusion and Texturing

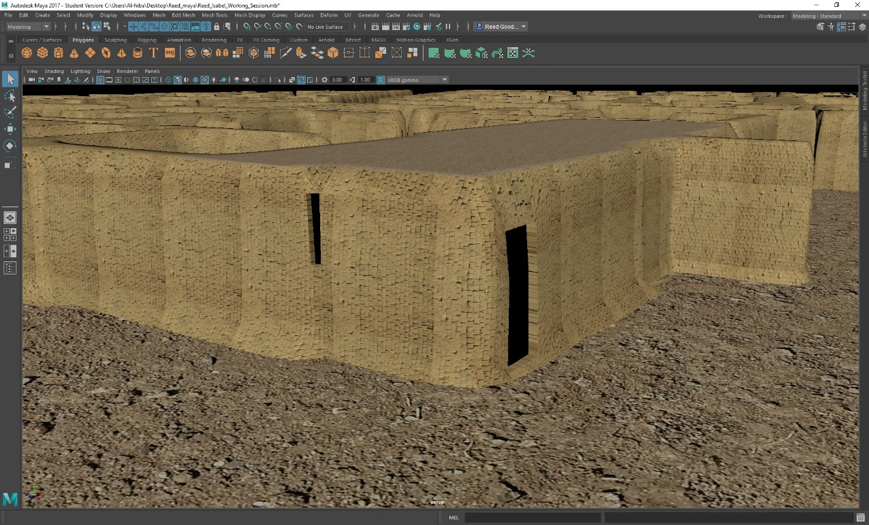

Figure 24: Door Creation through Face Selection, Extrusion and Texturing

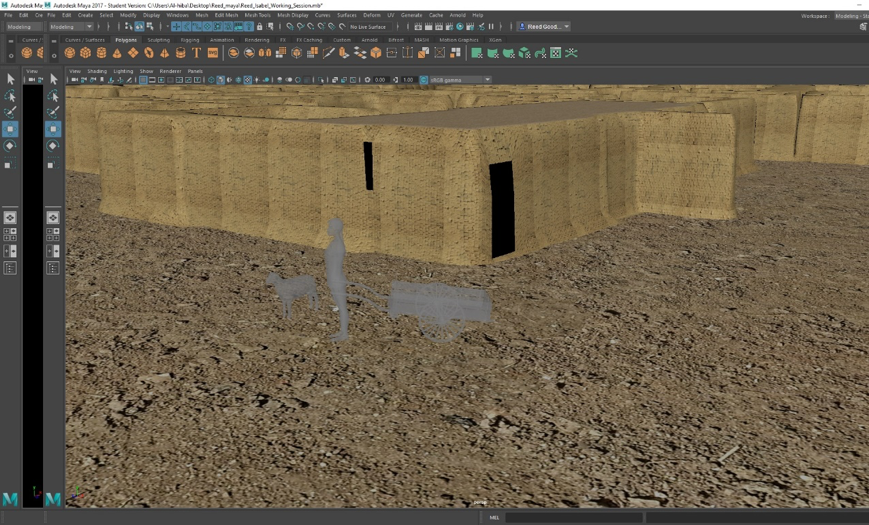

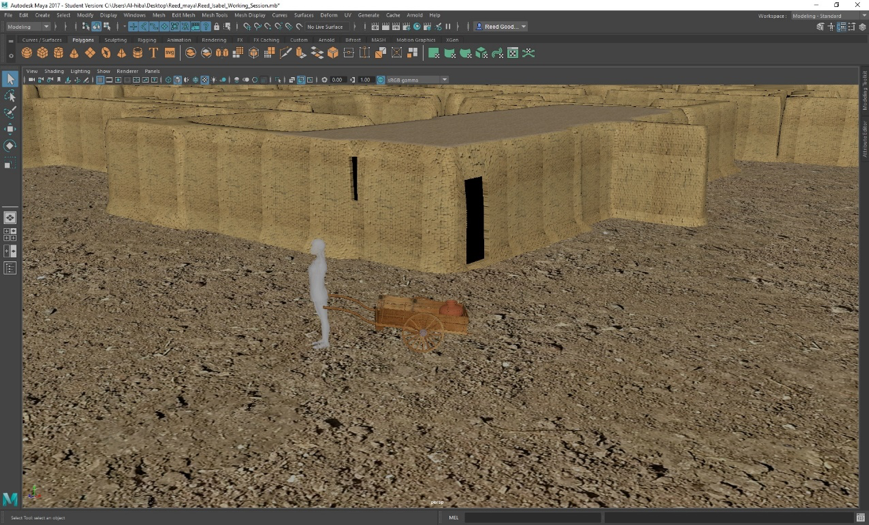

Figure 25: Female Individual with Wooden Cart and Ceramic Vessel
Figure 26: Sheep with Female Individual and Wheelbarrow

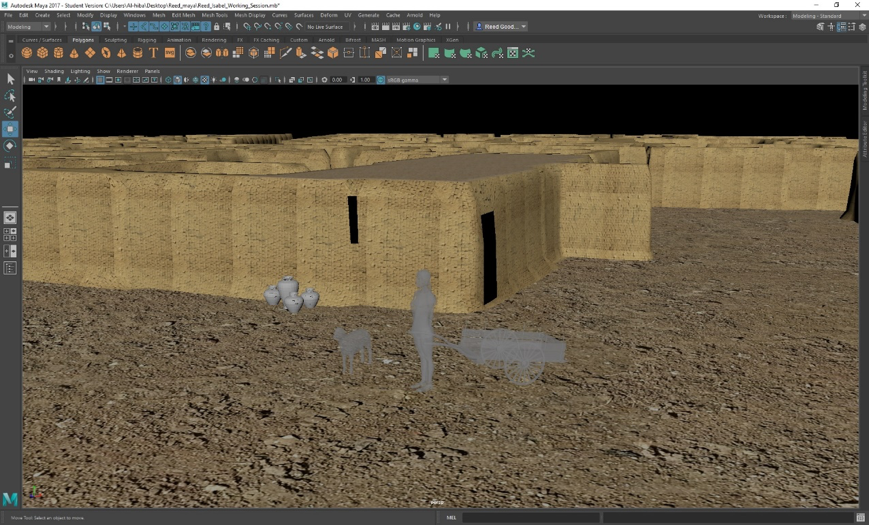

Figure 27: Additional Pottery Vessels with Sheep, Female Individual and Wheelbarrow

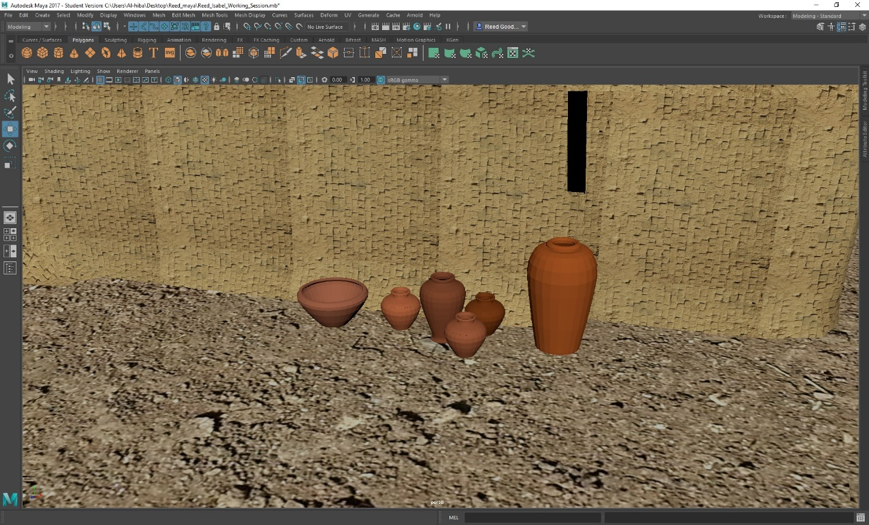

Figure 28: Textured Pottery Vessels with Realistic Paste Applied

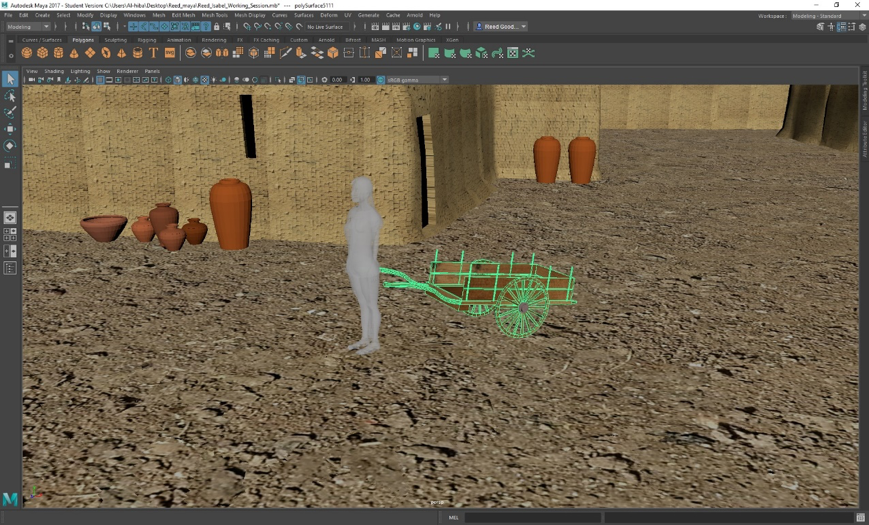

Figure 29: Modeled Wheelbarrow
Figure 30: Reduplicated and Scaled Sheep

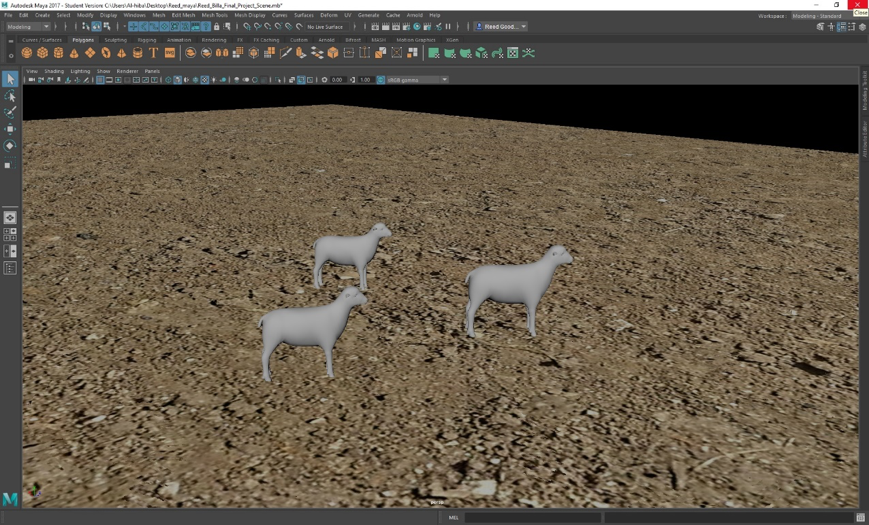

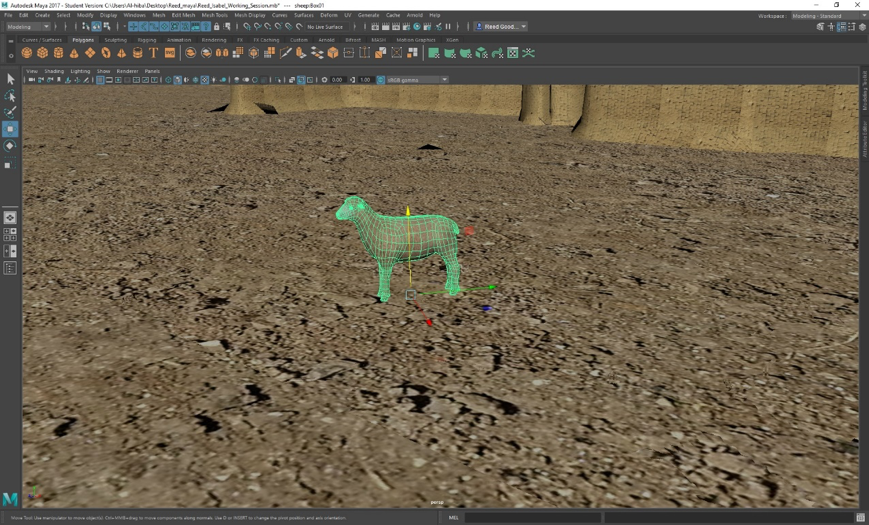

Figure 31: Textured Sheep

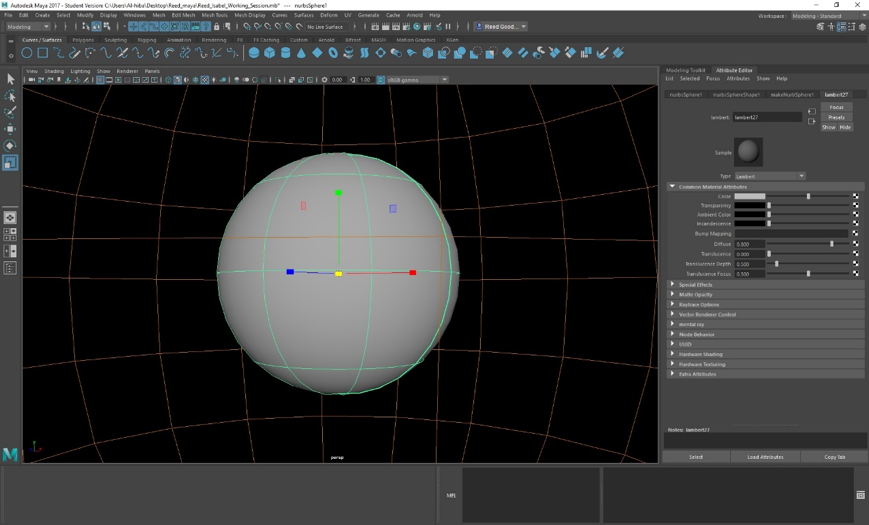

Figure 32: NURBS Sphere Encapsulating Entire Model (Inside Sky Colored Texture)
Figure 33: First Render with Mental Ray 3ds Max

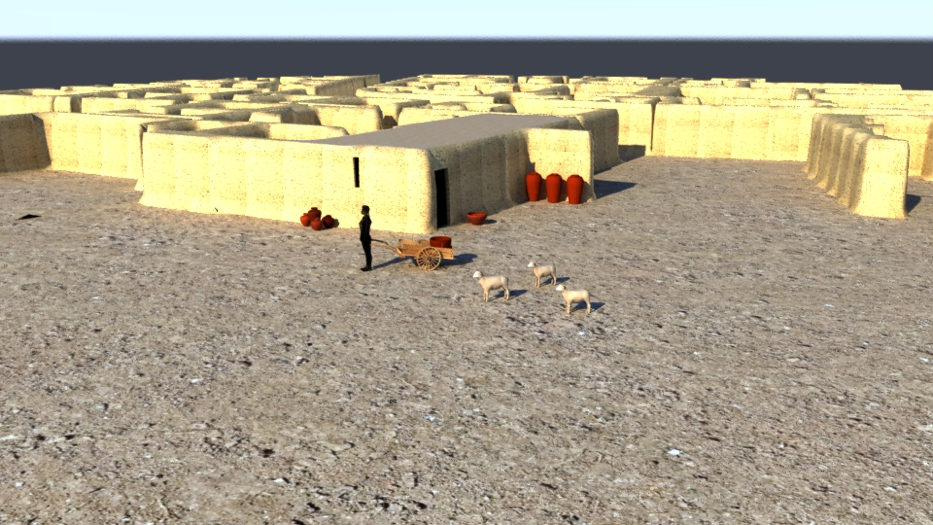

Figure 34: Second Render with Mental Ray 3ds Max

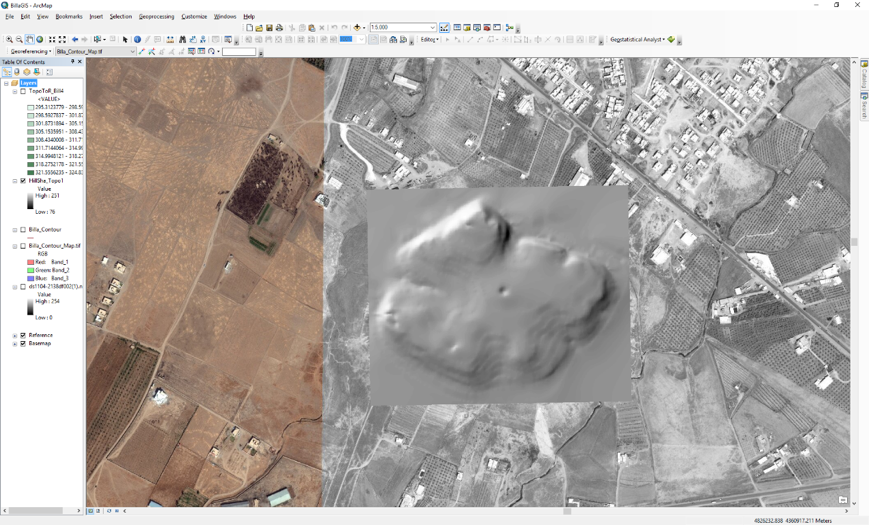

Figure 35: Digital Elevation Model of Tell Billa
Figure 36: Contour Tracing in ArcGIS for Digital Elevation Model
